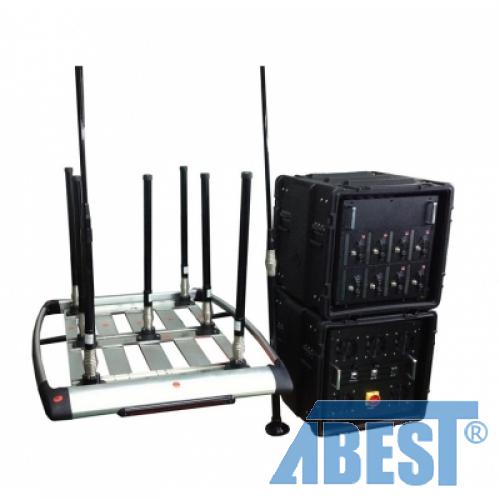

Portable Pelican Convoy 8 bands 510W RCIED Bomb Jammer up to 1km

Product introduction

Military / Police / Government / Convoy Portable RCIED Jammer 8 bands

Applications : Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug units, Riot-control units, Embassies protection, Roadblock protection, Checkpoint protection

8 Bands  1st
1. 130-180MHz 60W VHF Walkie-Talkie
2. 420-280MHz 60W UHF Walkie-Talkie
3. 920-965MHz 100W GSM 900
4. 1800-1880MHz 100W DCS GSM 1800
5. 2100-2170MHz 100W 3G UMTS
6. 2620-2690MHz 30W 4G LTE & WiMax
7. 2400-2500MHz 30W WiFi & Bluetooth
8. 1520-1670MHz 30W GPS L1, SAT Cell Phone

8 Bands 2st
1. 130-180MHz 60W VHF Walkie-Talkie
2. 420-280MHz 60W UHF Walkie-Talkie
3. 850-895MHz 100W CDMA 900
4. 1920-1990MHz 100W PCS CDMA 1900
5. 2100-2170MHz 100W 3G UMTS
6. 2620-2690MHz 30W 4G LTE & WiMax
7. 2400-2500MHz 30W WiFi & Bluetooth
8. 1520-1670MHz 30W GPS L1, SAT Cell Phone

(Option) 5.0-5.5GHz:10W, 5.5-6.0GHz:10W WiFi 11.a, 20-50MHz: 50W 66-88MHz:50W Civil Remote Control Toys: 200-300MHz:60W, 300-400MHz:60W: VHF 130-180MHz:50W, UHF 420-480MHz:50W, GPS L1 L2 L3 L4 L5: 30W.  Jammer is available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.

Portable case RCIED Jammer is a wide-band portable jamming system, designed for the protection of VIP’s and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks. Briefcase Jammer transmits RF interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. Case Jammers are also deployed to guard forces in the field, Dignitaries and VIP’s, checkpoint and border crossings, roadblocks, Embassies, Police and Government offices etc. Case Jammer is available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements

Total RF output power: 510W (Adjustable output power for each band)
Jamming  Range: 500-1000 meters@－75dBm
Power supply:  AC adapter  (AC220V-DC27V or 24V/  40-50 Amp)
Adjustable Output Power each Band, Stand-alone modular design and individual power control.
Temperature over protection.
Working status indicator for each band modular.
Dimension: 69cm(L)×69cm(W)×39cm(D)
Weight: 65 Kg (approximately) just main unit not included antenna & all accessories
Operating temperature: -20℃ ~ +60℃
Humidity: 5% ~ 90%

Antennas Spec:
       850-960Mhz : Omni    5dBi, 650mm, 0.8Kg
    1500-1600Mhz : Omni    5dBi, 650mm, 0.8Kg
    1805-1990Mhz : Omni    5dBi, 650mm, 0.8Kg
    2000-2200Mhz : Omni    6dBi, 650mm, 0.8Kg
    2400-2500Mhz : Omni    7dBi, 650mm, 0.8Kg
    2600-2650Mhz : Omni    7dBi, 650mm, 0.8Kg

Additional Military type antennas with vehicle frame, -  USD$xxxx.00
